Understanding Underground Drill Jumbos
Underground drill jumbos are crucial equipment used in the mining industry, particularly in tunneling and development activities. These machines are engineered to perform hole drilling in rock to facilitate the blasting of ore or rock. Their design enables the operation in confined spaces and complex underground environments. The primary function of an underground drill jumbo is to drill precise holes that optimize material extraction while ensuring stability in the surrounding rock structure.
The role of a drill jumbo in mining operations is essential as it directly influences the effectiveness and efficiency of mining activities. By employing advanced drilling technology and automation, these systems can maximize production rates while minimizing operational costs. In addition, drill jumbos support the safety measures in underground mining, providing controlled drilling that reduces the risk of groundย falls and promotes a safer working environment for operators.
The Role of a Drill Jumbo in Mining Operations
The underground drilling rig combines technologies and approaches to achieve its objectives in mining activities. It plays a role in both term and long-term mining processes such as tunnel building retrieving ores and conducting development drilling. Its adaptability enables it to function effectively in settings while ensuring accuracy and efficiency, throughout the operations.
The drill jumbo is essentialย for carrying out the stages of the mining process such as drilling activities like mapping and blasting, in a sequential manner efficiently The efficient use of the drilling cycle is crucial to boost productivity and minimize operational downtimes.ย These machines can have automated features that improve drilling precision resulting in higher resource extraction rates.
Key Components of an Underground Drill Jumbo
A drill jumbo used underground is made up of parts that help it work effectively in tough conditions. The important components consist of the arm extension, support, and control systems for guiding the drill rods to the drilling location on the platform.
The drill rods are the elements that go into the rock to create holes of the required depth and width during drilling operations, in mines or tunnels nowadays drill jumbos come equipped with advanced control systems that enable operators to adjust various parameters like angle control feed rate and rotation speed conveniently The platform not offers mobility in settings but also houses the controls and machinery operated by the worker.
Types of Underground Drill Jumbos
There are various types of underground drill jumbos designed to accommodate specific tasks and requirements in mining operations. These include single boom, double boom, and production drill jumbos, each serving unique operational needs.

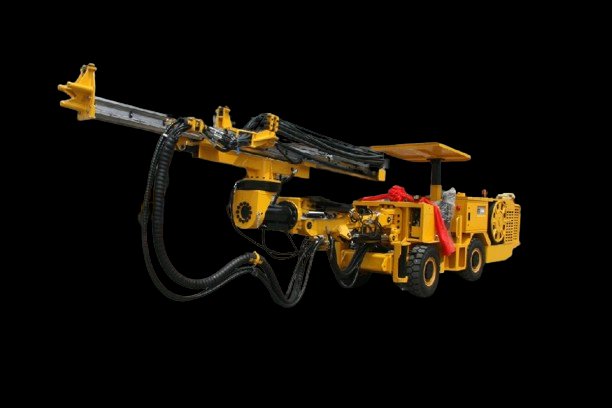

Single Boom Development Drill Rig
A single boom development drill rig is designed primarily for tunneling applications. This type of drill jumbo is compact, allowing easy maneuverability in restricted spaces. It focuses on development drilling, where it creates access tunnels in ore bodies. The single boom’s functionality typically includes a 360-degree rotation axis and automatic positioning features, making it suitable for narrow vein applications.
These rigs are versatile and can be fitted with different types of drill bits tailored to specific geological conditions. Their efficiency in drilling operations contributes significantly to expedited tunneling processes, ensuring that the development of new underground passages is completed effectively.

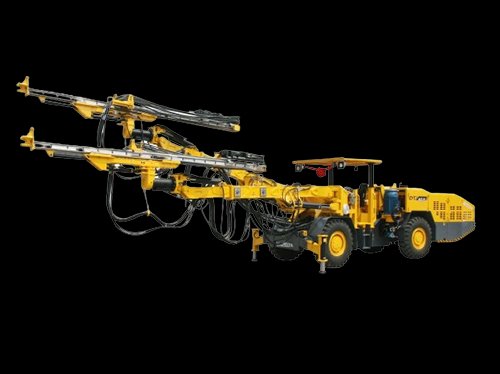

Double Boom Development Drill Rig
A double boom development drill rig offers enhanced drilling capabilities by providing two booms that can operate independently or simultaneously. This type of underground drill jumbo is especially useful for large-scale operations requiring rapid advancements in tunneling development or ore extraction.
By using two independent booms, operators can execute simultaneous drilling operations in multiple directions, greatly increasing overall productivity. The double boom configuration is well-suited for accessing larger ore bodies and extending tunnels faster than single boom rigs.

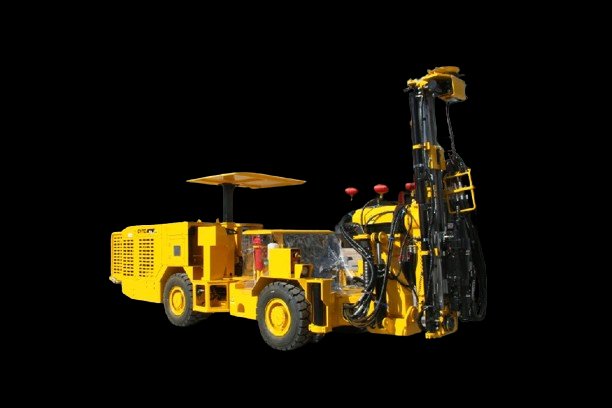

Production Drill Jumbo
Production drill jumbos are specifically designed for large-scale drilling operations concentrated on blasting. These machines accommodate the rigorous demands of production drilling within established ore bodies. Unlike development rigs, production drill jumbos are adapted for precision drilling with the ability to drill deeper and broader holes tailored for blasting purposes.
These machines play a pivotal role in optimizing the extraction process and improving recovery rates. Advanced automation in production drill jumbos allows for precise control over drilling parameters, which enhances the efficiency of blast operations.
In conclusion, underground drill jumbos are sophisticated machines vital for the mining industry’s efficiency, safety, and productivity. Understanding their functions, components, and types provides insight into their indispensable role in modern mining operations. Constant advancements in technology and design ensure that these machines will continue to evolve, meeting the demands of an ever-changing mining landscape.
Operation Mechanics of Underground Drill Jumbos
Drilling Mechanism
The operation of underground drill jumbos relies on a tuned combination of hydraulic and electro-mechanical parts working together seamlessly to oversee the drilling process with precision, to achieve the desired depth and width of holes accurately. These drill jumbos come equipped with rotary systems that offer controlled rotation, for penetration into different rock formations. Additionally, the incorporation of feedback systems delivers data to operators to guarantee exactness in both depth and angle while drilling takes place.
One important feature is how the drilling tool is made to accommodate types of drill bits, for different geological settings for operators to choose from. Such as diamond and tungsten carbide options depending on the rock being drilled into. This flexibility boosts efficiency. Greatly extends the lifespan of the equipment. Moreover, the hydraulic feed system of the drill jumbo efficiently applies force to reduce tool wear and increase drilling speed.
Navigation and Maneuverability
The ability to navigate and maneuver efficiently is crucial for underground drill jumbos to operate effectively in complex mining settings. These machines are equipped with articulated frames that offer operators the flexibility to move through tunnels and adapt to the ground. Their compact design, with a short turning radius is vital for navigating vein applications and ensuring stable drilling operations.
Moreover, underground drill jumbos come with state-of-the-art guidance systems that make precise alignment easier. These systems provide automated positioning features that enable placement of the drill at designated coordinates, for hole drilling. Advanced sensors constantly monitor the drill jumbo position and orientation to enhance precision. This blend of innovative design and technology enhances maneuverability and productivity ensuring that drilling tasks are carried out efficiently and swiftly.
Yantai Chi Hong Machinery Co., Ltd.: Leading Provider in Mining Equipment
Company Overview
For 12 years, Yantai Chi Hong Machinery Co. Ltd has built a reputation, as a reliable manufacturer in the mining equipment sector. With a production site covering 96 000 meters, the company prides itself on employing over 300 workers and a team of seasoned technicians who excel at producing top-notch machinery. The company’s focus on innovation has resulted in its products receiving certifications such as EU CE certification and ISO9001;ย 2015 international quality certification demonstrating its commitment to excellence.
The company offers an array of products that blend technology with practical solutions, for mining needs. They provide LHD loaders and effective underground drill jumbos that cater to various mining applications across different sectors. Yantai Chi Hong has set itself apart from rivals by prioritizing safety enhancements and performance improvements. Its commitment to excellence has established the company as a player, in the mining equipment industry.
Their Cutting Edge Solutions:
Versatile Development Drill Rigs:
In the world of mining Yantai Chi Hong development drill rigs are crafted to tackle the obstacles that come their way underground mines face unique challenges and require specialized equipment to overcome them effectively and efficiently these rigs stand out for their flexibility, with various boom setups designed for specific drilling needs this versatility enables them to navigate narrow passages and handle broader excavation areas, with precision and reliability ensuring accurate drilling outcomes in all scenarios.
Furthermore, the construction drill rigs are designed with features to withstand the challenges of underground drilling. Sophisticated hydraulic systems deliver power to the drilling equipment enabling deeper hole penetration and enhanced efficiency. Additionally, the integration of automated control systems boosts effectiveness empowering operators to modify drilling settings and promptly adapt to different ground conditions.
High-Efficiency Production Equipment:
Yantai Chi Hongโs high-performance production equipment plays a part in improving mining operations efficiency by focusing on maximizing output and increasing reliability, in production drilling setups. The machines are designed with automation capabilities that allow operators to boost production rates and cut down the time and expenses linked to drilling techniques.
The production machinery utilizes cutting-edge technology to minimize downtime during operations by integrating hoisting systems and advanced cooling methods along, with detailed maintenance notifications to uphold uninterrupted functionality and reduce disruptions to a minimum level consistently. This blend of effectiveness and dependability positions Yantai Chi Hong’s production equipment as an investment for mining companies striving to optimize their resource extraction operations while upholding safety protocols and industry regulations.
To sum up, the importance of grasping the operations and inner workings of drill jumbos in enhancing mining activities is crucial. These cutting-edge drilling tools, with their drilling techniques and top-notch navigation features play a role in underground settings. Yantai Chi Hong Machinery Co., Ltd. stands out as a frontrunner in providing groundbreaking machinery that promotes secure mining methods. As technology advances further the functions of drill jumbos will progress well resulting in boosting their efficiency in maximizing productivity within the mining sector.
