1. Understanding the Lifespan of an Electric Underground Truck Battery
The Trend toward EVs in Underground Mining Is in Full Swing Given that it offers great benefits from an environmental standpoint-reduced emission levels and other benefits related to reducing ventilation costs. The critical point, however, is a battery system because an electric underground truck’s general operational cost and efficiency depend upon battery life. Although maintenance routines for diesel engines already exist, the best service life for a battery calls for new strategies in its management at mines. In this respect, it’s not only a matter of time that influences the lifespan of a battery but rather use patterns, charging methods, and the environment. These aspects are crucial in securing an investment in electric underground truck technology.
2. Factors That Affect the Longevity of an Electric Underground Truck Battery
Several factors contribute to a big difference in the service life of an underground electric truck battery; in all factors, the following must be considered to create better management:
2.1 Battery Chemistry and Build
The type of chemistry a battery applies determines the life span expected for an electric underground truck. Lithium-ion batteries are of high energy and power densities, hence commonly applied in such areas. Nevertheless, within that category as well, considerable variation exists dependent on the chemistry that bestows different cycle life and temperature tolerance on the battery. Added to this is quality of construction, and importantly the BMS. A robust design with good thermal management and tight control of charge and discharge can pay dividends in extending battery life.
2.2 Charging and Discharging Patterns
Charging and discharging of an electric underground truck battery will, to some degree, affect its life span. The fast charging, although convenient, tends to inflict more stress on the battery than the slower charges. Depth of discharge, which denotes how much the battery capacity is utilized prior to recharging, is another issue. Consistently using a large portion of the battery capacity can reduce overall cycle life. The contribution of charging cycle frequency, given that a charge-discharge cycle also degrades the battery and so on.
2.3 Operating Environment and Conditions
Underground mining poses other challenges to the electric underground truck batteries: High temperatures can speed up degradation, while extremely low temperatures reduce performance and lifetime. The presence of dust and moisture develops even more unbearable conditions that might impinge negatively on the performance and lifetime of the batteries. The mechanical vibration and shocks during operation could lead to wear and tear on the components in the battery.
2.4 Maintenance and Monitoring
Proper maintenance and regular monitoring of the battery health are very important in extending the life span. Regular inspections for physical damage, keeping the terminals clean, and checking the state of charge will help in maintaining optimal performance. Tracking metrics such as state of charge (SOC), state of health (SOH), and operating temperature, help in early detection of potential issues and facilitate proactive maintenance.
3. Typical Duration You Can Expect from an Electric Underground Truck Battery
While the life of an electric underground truck battery is variable, some general guidelines can be considered:
3.1 OEM Specifications and Warranties
OEMs generally provide some sort of specification and warranty that could give a fair idea of the expected life. These are usually given as charge cycles or operational hours that provide a clue on the intended life of the battery. These are often measured under ideal test conditions, so real performance may vary depending upon the operating conditions of the mine.
3.2 Average vs. Extended Lifespan
The average is around 10,000 to 15,000 hours for an electric underground truck battery operating under good care, strategic charging, and an excellent battery management program. Being able to operate beyond that duration, into or even past 20,000 hours, optimizes performance and thus calls for careful planning. This also needs diligent execution of the protocols in this article.
4. Signs Your Electric Underground Truck Battery Needs Attention
Recognizing early signs of battery degradation is important for proactive maintenance and prevention of costly downtime. The following are some of the signs to look out for:
4.1 Reduced Capacity and Range
If your electric underground truck starts giving less distance on a full charge, then that is a signal that the battery capacity is going down. A noticeable reduction in operating range shows that the battery is not holding as much charge as it did previously.
4.2 Increased Charging Times
A sharp rise in the time taken to fully charge the battery demonstrates that some sort of internal resistance may increase, or the overall health of the battery deteriorates. Changes in the duration for charging have to be looked into before the situation becomes critical.
4.3 Overheating or Physical Damage
If the battery gets too hot during operation or charging, or if there is physical damage such as swelling or leakage, then the problem needs to be tackled immediately to prevent further deterioration or safety hazards.
5.ย Procedures to Extend the Life of Your Electric Underground Truck Battery
Following are some procedures that can help in elongating the life of an electric underground truck battery:
5.1. Optimized Charging Strategy
This can be eased by using slower charging rates when possible. Try to avoid charging the battery to 100% on a regular basis, and also try not to let it completely discharge; these extremes accelerate degradation. Try to keep partial charges on the battery.
5.2 Maintaining Proper Temperature Control
Take control and implement measures that can regulate the operating temperature of the battery, including proper ventilation, cooling systems, and avoidance of operation in areas with extreme temperatures. A battery operating within its ideal temperature range will have a longer lifespan.
5.3 Regular Inspection and Maintenance
Routine checks for damage, loose connections, and corrosion. Clean the terminals of the batteries, and ensure good ventilation around the battery. Proper maintenance can catch small issues before they become big problems.
5.4 Regenerative Braking Operation
Employ regenerative braking to recover energy in downhill operations. This not only extends the operating range but can also reduce stress on the battery by recharging it with the truck’s kinetic energy instead of relying on wall power.
5.5 Balancing Depth of Discharge
Avoid deep discharges by recharging the battery within the SOC range of 20% to 80%. The balanced state of charge will result in a remarkable extension of the battery’s cycle life.
5.6 Data-Driven Battery Management
Employ an appropriate BMS for logging and analysis of data with respect to the performance of the battery. Among the most relevant parameters to be monitored are SOC, SOH, temperature, and voltage. This allows the identification of how usage patterns, charging strategies, and maintenance scheduling can be optimized.
6. Choosing a New Battery System for Your Electric Underground Truck
Changing your electric truck battery system involves consideration of the following:
6.1 Investigate Advanced Battery Technologies
First, you should investigate the current state of development in advanced battery technologies. That is, you need to check on different new chemistries, their performance, energy density, or how long they are expected to last. Comparing options will help you make an informed decision.
6.2 Consider Your Future Operational Needs
The selected battery system should not only be able to satisfy today’s operational requirements but also consider further growth and changing demands, taking into account expansion plans or work cycle changes in the mine.

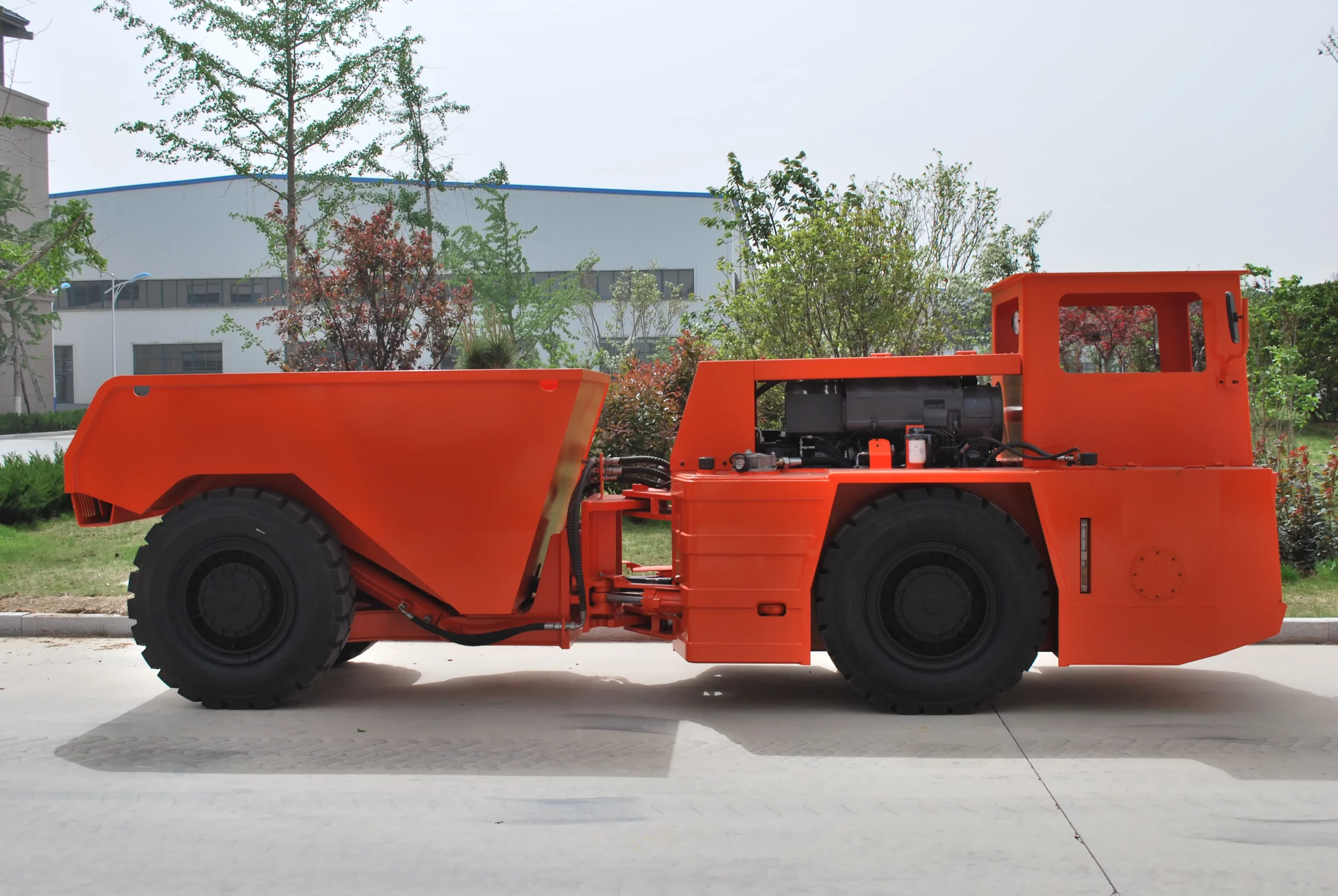

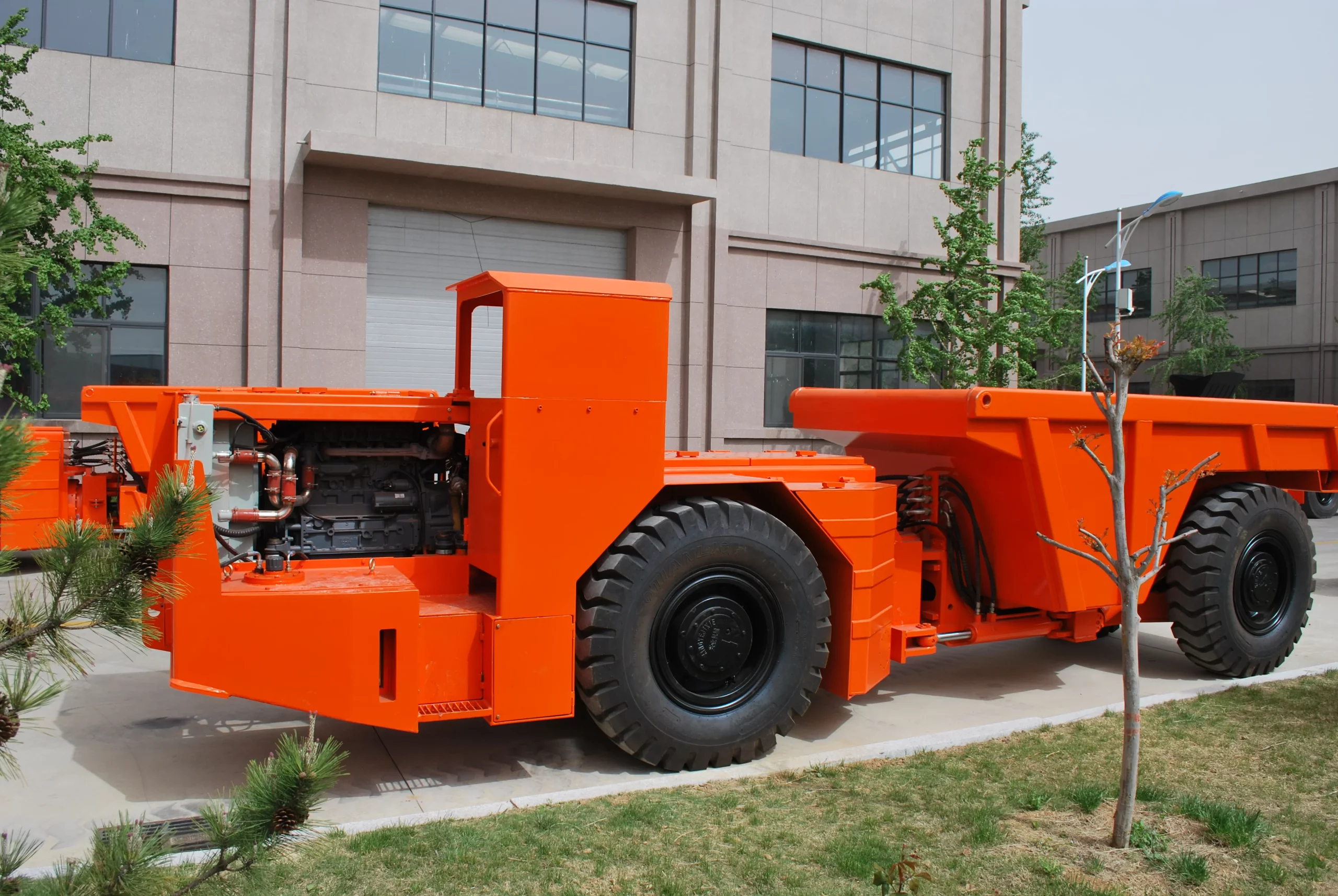

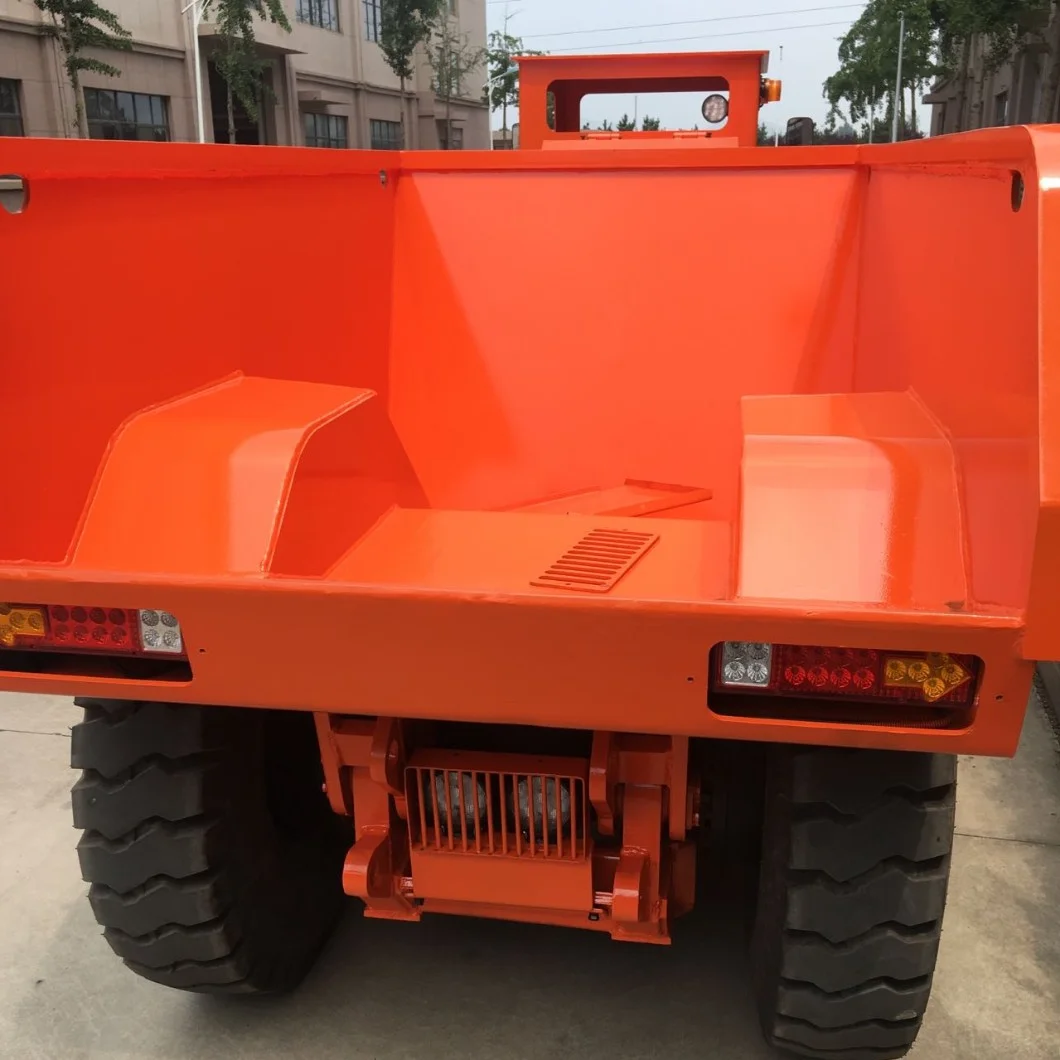

Yantai Chi Hong Machinery Co., Ltd.ย has been one of the leading underground mining equipment suppliersย for 12 years, focused on research, production, sales, and services. Their CHUK-6/8 MINE TRUCKย is optimized for tonnes while minimizing extraction costs, with a width, length, and turning radius optimized to make it one of the better choices for narrow vein tunnels. The CHUK series of underground mining trucksย of Yantai Chi Hong Machinery Co., Ltd.ย have been developed to meet the demands required in underground mining, supported by an overall system of sales and service, reflecting the company’s commitment to reliable equipment for the mining industry.
These are the factors affecting battery life, and by following these protocols, mining can expand the life of electric underground truck batteries hugely with considerable cost and operational efficiencies.
